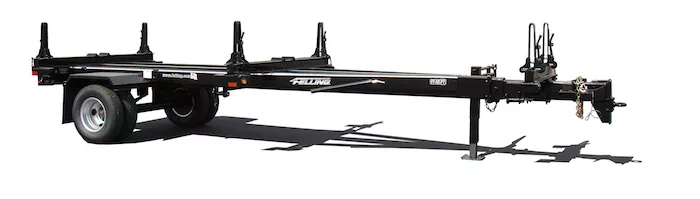

Felling Trailers' FT-10-1 Utility Pole Trailer has a retracted length of 24 feet and can extend to 40 feet with one adjustment point midway. The model line offers several payload capacities and can be manufactured with a single or tandem axle configuration, both with dual wheels. 10,000; 12,000; 15,000 or 20,000 pound axles are available, and all can be equipped with airbrakes if needed.

The FT-10-1's industrial grade energy chain (cat-track) houses both the electrical cable along with the airlines. There is no operator intervention ever needed when extending or retracting the trailer tongue, virtually eliminating the possibility of damaging the electrical cord or airlines.

Equipped with a 2 inch cold rolled steel, positive locking adjustment pin, an operator will never have to be concerned with the pin shearing or losing the pin and clip assembly. Designed with a notched flange welded on the pin, the flange notches have to pass through two tabs welded 90 degrees from each other assuring a positive locked position.

Felling’s Utility Pole series has an overall width of 95 inches, being no wider than the truck pulling it, making it easier to fit into tight situations.

For more information, please visit www.Felling.com.
